Wireless Anti-winding Switch

ZN101-WX

A suspended pull-rod type wireless anti-overwinding switch designed for height limiting on cranes, rotary drilling rigs, truck-mounted cranes, and other equipment.

consulting

Product overview

A suspended pull-rod type wireless anti-overwinding switch designed for height limiting on cranes, rotary drilling rigs, truck-mounted cranes, and other equipment. It utilizes wireless technology to eliminate the complexity of signal cable transmission, achieving long-distance signal transmission and strong anti-interference capabilities. The design features a thickened aluminum housing combined with engineering plastic for strong impact resistance and reliable stability. Silicone rubber seals ensure a high protection level and excellent weather resistance.

Electrical Parameters of receiving module	Operating Voltage	9~32VDC
	Rated current	≤1A
	Switching output	1ch
Electrical Parameters of transmitting module	Battery capacity	1000mAh
Electrical Parameters of transmitting module	Wireless communication frequency	433MHz

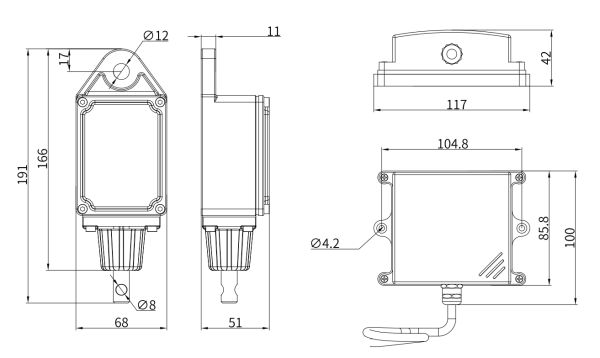

Structural parameters	Overall Dimension	187x77x57（mm）
	Shell material	Aluminium Alloy + Engineering Plastic
	Mounting method	Suspension Type Bolt Mount
life span	Electrical Life	300,000 times
life span	Mechanical life	1 Million Times
Environmental parameters	Operating Temperature	-40℃ ~ 85℃
	Storage temperature	-40℃ ~ 85℃
	Protection Grade	IP67
	Anti-vibration Grade	GB/T 4798.5 5M3 grade
